ThoYu High - Efficiency Disk Type Wood Chipper Machine Model XY100 for Pallet Production and Industrial Wood Chip Making

Don't miss out on this high - efficiency disk type wood chipper machine! Contact us now to place your order and boost your production efficiency!
Zhengzhou ThoYu Mechanical & Electrical Equipment Co., Ltd. Zhengzhou, China
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/681c57cbb9186d36f6d28816/68218e2c3bbe3801b10e4c37/20250613172008/Disk-wood-chipper-machine-1.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/681c57cbb9186d36f6d28816/68218e2c3bbe3801b10e4c37/20250613172008/Disk-wood-chipper-machine-2.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/681c57cbb9186d36f6d28816/68218e2c3bbe3801b10e4c37/20250613172008/Disk-wood-chipper-machine-3.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/681c57cbb9186d36f6d28816/68218e2c3bbe3801b10e4c37/20250613172008/Disk-wood-chipper-machine-4.jpg

Recommended Products

Product Parameters

Disk Type Wood Chipper Machine

Model

TYDX-800

TYDX-1000

TYDX-1200

TYDX-1400

Capacity (t/h)

3-5

4-6

6-8

8-10

Main power (kW)

30

37

45

55-75

Cutter diameter (mm)

800

1000

1200

1400

Feeding port size (mm)

200*200

300*320

330*350

360*370

Max feed diameter (mm)

Φ190

Φ290

Φ330

Φ350

Total weight (kg)

1680

2720

3560

4120

Dimensions (mm)

1800*700*1200

2100*1000*1300

2200*1200*1850

2600*1300*1900

Close
Product Details
Product Introduction

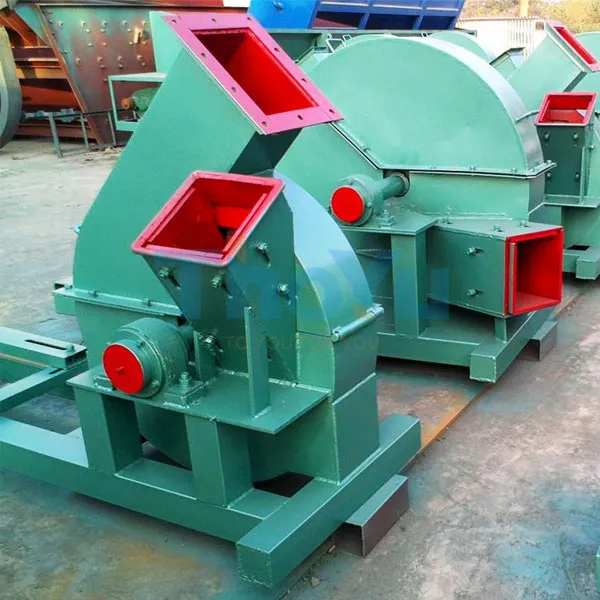

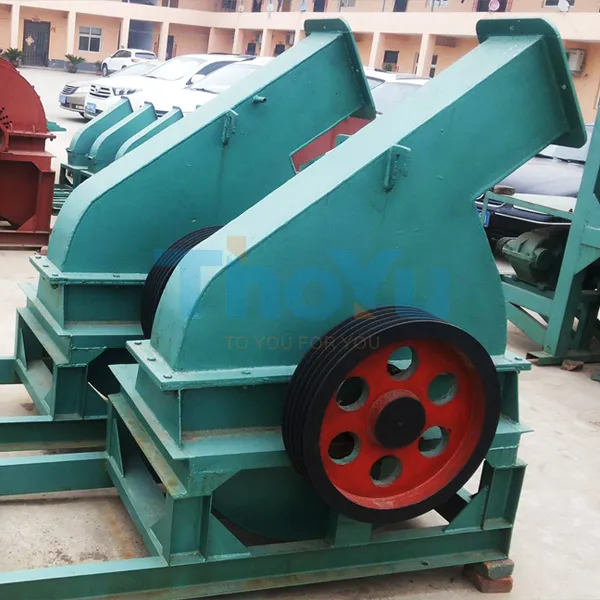

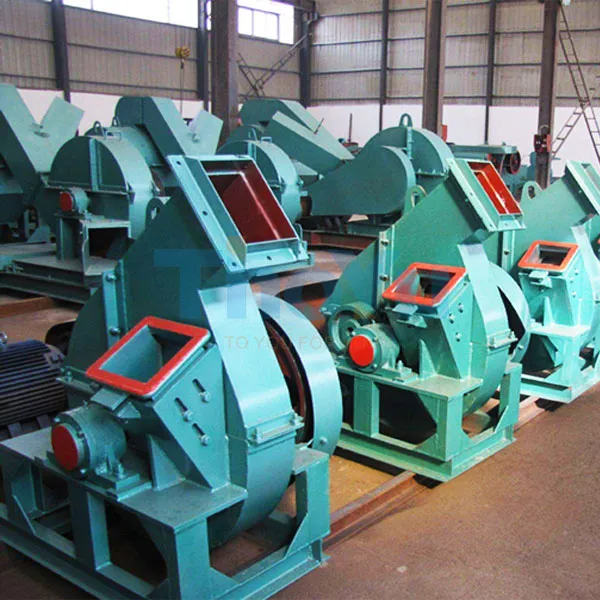

ThoYu, a renowned brand from Zhengzhou ThoYu Mechanical & Electrical Equipment Co., Ltd, is proud to present the Disk Type Wood Chipper Machine. Our brand slogan 'ThoYou For You' underscores our dedication to meeting your specific needs. This machine is engineered to transform logs, small - diameter wood, ya wood, and boards into high - quality industrial wood chips. These chips feature uniform length, flat cuts, and consistent thickness. With a straightforward structure, it mainly consists of a large disc equipped with four or six blades. The circular movement of the blades and the high - speed rotation of the disc create a strong airflow to transport the finished chips to the discharge port. It comes with low - voltage or high - pressure motor options, multiple feeding and discharging types, high output, and adjustable wood chip length, ensuring a reliable and efficient solution for your wood - chipping needs.
Advantages and features
1.High - quality output: Produces wood chips with uniform length, flat cuts, and consistent thickness.
2.Simple structure: Easy to operate and maintain.
3.Motor flexibility: Available with low - voltage or high - pressure motors.
4.Multiple options: Offers various feeding and discharging types.
5.High output: Ensures efficient production.
6.Adjustable length: Allows you to customize the wood chip length according to your requirements.
Application Scenario
This disk type wood chipper machine is highly suitable for paper mills, particle board factories, fiberboard factories, and wood chip production bases. It can also be used to crush waste materials for molded wood pallet and pallet block production. It caters to a wide range of international markets where wood processing and recycling are in demand, providing reliable solutions for both large - scale industrial operations and smaller wood - related businesses.
