1. The device of feeding system |

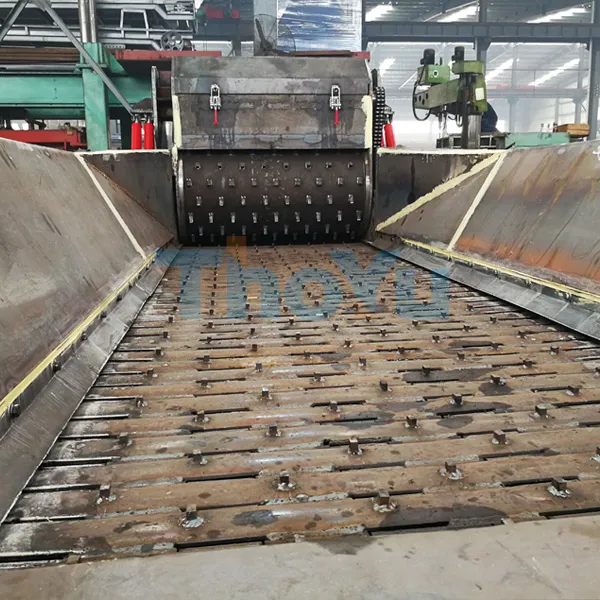

Slot type chain conveyor |
|
Model |
TYZH-1300-600 |
|
Power |
7.5 kW+5.5 kW |
|
Width |
1300 mm |
|
Conveying length |
5100 mm |
|
Velocity |
0-18000 mm/minute |
|
2. Main machine |

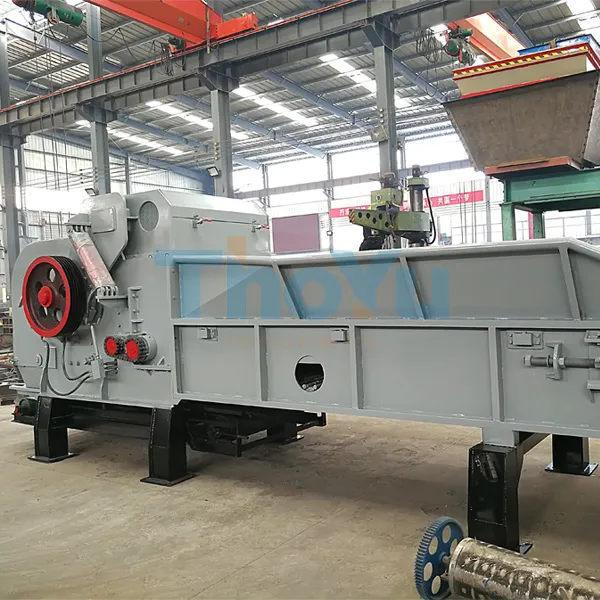

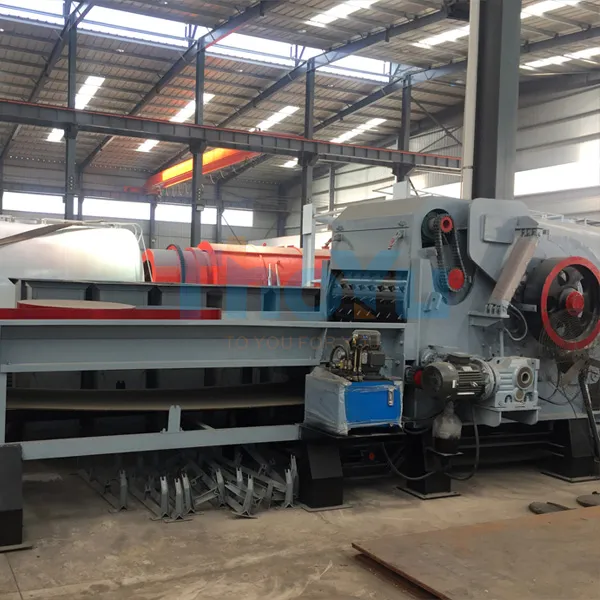

Comprehensive wood crusher |
|
Knife-cylinder Diameter |
800 mm |
|
Knife-cylinder Velocity |
540 rpm |
|
Capacity |
10-18 tons/hour |
|
Cutter material |
Fly hammer YG8 alloy material surfacing welding |
|
Maximum processing diameter |
340 mm |
|
Main power |
160 kW |
|
Finished product size |
Less than 100 mm |
|
3. Discharging system |
|
|
Power |
7.5 kW |
|
Width of conveyer belt |
1200 mm |
|
Materials of conveyer belt |
Four layers of nylon |
|
Discharge height |
4000 mm |
|
Conveying length |
11000 mm |
|
4. Hydraulic system |
|
|
Oil tank capacity |
120 L |
|
Oil pump motor power |
4 kW |
|
Note |
Electric control system (full set of Schneider electronic components) Motor all use new Kaiyuan motor |
